Sundance 10A316
Background
This is an internal build of iOS 6.0 which runs SwitchBoard. A dump of its file system weighed in at around 4.1 gigabytes. This build contains internal firmware for Haywire.
Kernels for Apple's A6X, A6, A5X, A5 and A4 processors, as well as the iPod Touch 3G and iPhone 3GS, are included. Interestingly, there is also a kernel file for an unused processor type - s5l8740x.
Haywire Firmware Findings
In /var/mobile/Library/Assets, you will find a folder containing the name haywire. Inside, you'll find multiple folders seemingly used for restoring. When looking in these folders, you'll find the codenames B137 and B135, with encrypted development components for each, as well as an encrypted ramdisk, with no known keys. They also have iBSS, DeviceTree, and Kernelcaches, but nothing more. Upon further exploration, the heavy lifting is done by a modified version of PurpleRestore built into /System/Library/AccessoryUpdaterBundles/Haywire.bundle. A form of this bundle can also be found in certain production firmwares in the same directory.
Applications

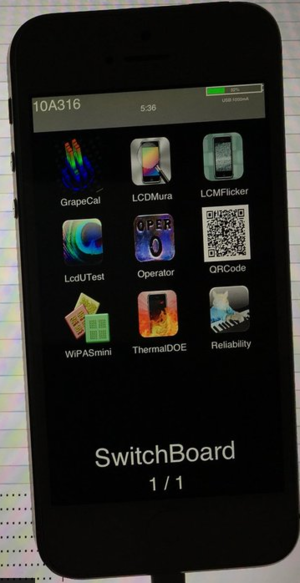

After booting up, SwitchBoard.app lets you choose from a slew of apps. They are:
- BatterySet (hidden)
- BurnIn (hidden)
- GrapeCal
- LCDMura
- LcdUTest
- LCMFlicker
- Operator
- QRCode
- WiPASmini
- ThermalDOE
- Reliability
